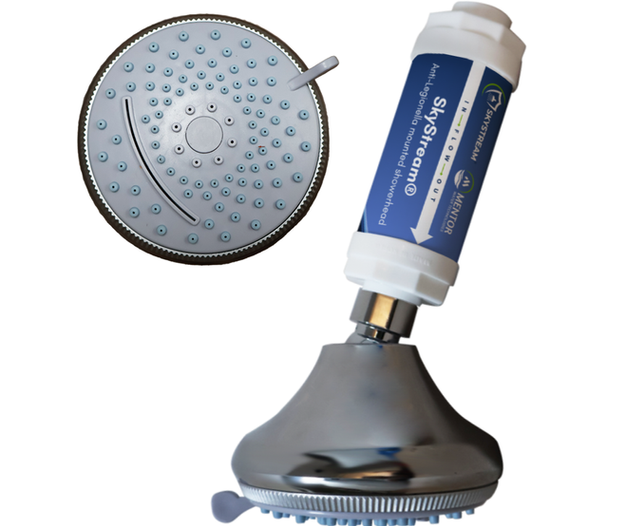

QF10-177 · Mounted Showerhead · Point-of-Use
SkyStream®
Log 10 Certified Antibacterial Mounted Showerhead
Advanced point-of-use ultrafiltration engineered to achieve Log 10 reduction of Legionella pneumophila and other waterborne bacteria under controlled operating conditions. Designed with four spray modes and compatible with standard professional installation environments without replumbing requirements.
Independently validated
ASTM F838-20 validation conducted by Vitens (NL) Laboratories.
0.08 µm
Pore size
Physical Barrier. Stops Waterborne Pathogen Larger than
0.08 microns.
Log 10
99.99999999%
Bacterial Reduction -
tested and certified to
ASTM F838-20
135 Days
Service life
Up to 135 days per unit, depending on source water quality and usage conditions.
4
Operating Modes
Rain · Normal · Steam · Waterfall Four operating positions for user flexibility.
OVERVIEW

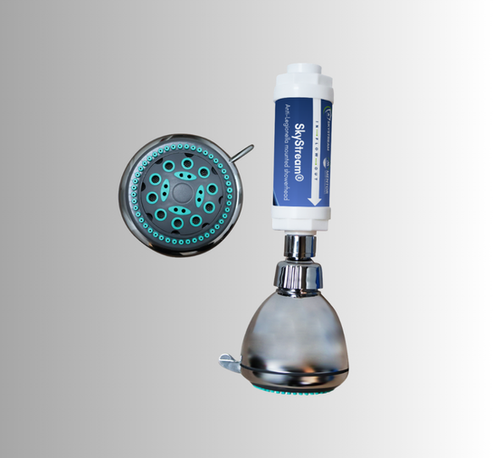

The SkyStream® (Model QFI0-177) is a point-of-use shower filtration system engineered to deliver high-performance bacteria reduction, supporting water safety programs in commercial and high-risk environments. Designed to reduce waterborne bacteria including Legionella pneumophila, NTM, E. coli, Salmonella, and other bacteria, the system supports critical water safety applications across healthcare, senior living, hospitality, and commercial facilities.
Validated to achieve up to 99.99999999% (Log 10) bacteria reduction under ASTM F838-20 protocols, the system delivers consistent ultrafiltration performance under controlled operating conditions while maintaining standard shower flow in professional installation environments.
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and operating under ISO 13485:2016 quality management principles, SkyStream® is aligned with European water safety frameworks including DIN 58356 and DIN EN 16421.
BEST FOR
Hospitals & Medical
Centers
Hospitality & Hotels
Senior Living & Nursing Homes
Gyms &
Sports Facilities
Rehabilitation Centers
Water Treatment
Distributors
TECHNICAL SPECIFICATIONS
SPECIFICATION
DETAIL
Model
QF10-177 SkyStream
Application
Point-of-use bacterial filtration for mounted and ceiling shower installations
Material
Polypropylene (PP)
Pore size
0.08 µm Hollow Fiber Ultrafiltration Membrane
Bacterial reduction
Log 10 (99.99999999%) reduction, tested according to ASTM F838-20
Service life
Up to 135 days (4.5 months), depending on water quality and usage conditions
Flow Performance
Maintains standard water flow with no loss in water output
Operating pressure
Continuous up to 10 bar (145 psi); short-term peak up to 20 bar (240 psi)
Operating Temperature
Continuous up to 60°C (140°F); peak up to 70°C (158°F)
Connection Type
Universal shower connection
Installation
Tool-free installation
Operating positions
Rain / Normal / Steam / Waterfall
Dimensions
Width: 110mm (4.33in) · Length: 220mm (8.66in)
Weight
245g / 8.64 oz
Quality assurance
100% Membrane Integrity Tested Per Unit
Manufacturing status
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and operating under ISO 13485:2016 quality management principles, aligned with European water safety frameworks including DIN 58356 and DIN EN 16421
DOCUMENTATION
Certifications & registrations
NSF P376
Bacteria and fungi reduction
ASTM F838-20
Legionella pneumophila reduction to Log 10
CE Marked
EU Drinking Water Directive 2020/2184
FDA Registered — #10094411
Medical device establishment
DIN EN 16421
Water system bacteria control framework
DIN 58356
Healthcare point-of-use filtration standard
ISO 13485:2016
Quality management principles
Vitens Laboratories (NL) Validation
Independent laboratory validation
