0.08 µm
Pore size
Physical Barrier. Stops Waterborne Pathogen Larger than
0.08 microns.
5 Stages
Sediment · KDF · Carbon · Scale · UF
5-stage patented technology for multi-contaminant water purification.
40,000 gal
Service life
Up to 40,000 gallons, depending on source water quality and conditions.
No Electricity
Pressure-driven
No electricity required, operates on existing water line pressure, suitable for a wide range of installation environments
OVERVIEW

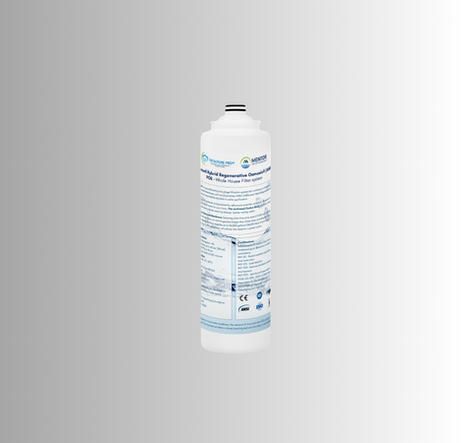

The TotalPure® (Model QFI0-80) is a zone-level point-of-entry water filtration system engineered for apartments, healthcare facilities, elderly care centers, and other hygiene-sensitive environments. The system integrates sediment filtration, KDF media, activated carbon, scale control, and ultrafiltration to reduce chemical contaminants, heavy metals, and waterborne bacteria including Legionella pneumophila, NTM, E. coli, Salmonella, and other bacteria.
Validated to achieve up to 99.99999999% (Log 10) bacteria reduction under ASTM F838-20 protocols, the system delivers consistent filtration performance under controlled operating conditions without electrical requirements.
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and operating under ISO 13485:2016 quality management principles, TotalPure® is aligned with European water safety frameworks including DIN 58356 and DIN EN 16421.
BEST FOR
Hospitals & Medical
Centers
Senior Living & Nursing Homes
Elderly Care Centers
Residential Complexes
Luxury RVs &
Motorhomes
Laboratories
Hospitality &
Hotels
Dental Clinics
Childcare centers &private schools
TECHNICAL SPECIFICATIONS
SPECIFICATION
DETAIL
Model
QF10-80 TotalPure
Application
Zone-level POE water purification for healthcare, residential and commercial environments
Material
Polypropylene (PP)
Technology
5-Stage Filtration POE — Sediment · KDF · Carbon · Scale Control · Ultrafiltration
Pore size
0.08 µm Hollow Fiber Ultrafiltration Membrane
Bacterial reduction
Log 10 (99.99999999%) reduction, tested according to ASTM F838-20
Service life
40,000 gal, depending on water conditions
Plumbing connection
3/4" NPT Pro Series
Peak flow capacity
12.6 GPM (48 lpm)
Optimized filtration flow
3.17 GPM (12 lpm)
Maximum pressure rating
360 PSI (25 Bars)
Flow Performance
Maintains standard water flow with no loss in water output
Operating pressure
Continuous up to 10 bar (145 psi); short-term peak up to 20 bar (240 psi)
Operating Temperature
Continuous up to 60°C (140°F); peak up to 70°C (158°F)
Power requirement
No electricity required
Installation
Click-connect system — filter replacement without tools or dismantling
Dimensions
H: 500mm (19.7in) · L: 343mm (13.5in) · W: 140mm (5.51in)
Weight
12.13 lbs (5.5 kg)
Quality assurance
100% Membrane Integrity Tested Per Unit
Manufacturing status
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and an EPA FIFRA-registered facility (Est. No. 105402-NLD-1)
DOCUMENTATION
Certifications & registrations
ASTM F838-20
Legionella pneumophila reduction to Log 10
DIN EN 16421 · DIN 58356
German / EU standards compliance
ISO 13485:2016
Quality management principles
CE Marked
EU Drinking Water Directive 2020/2184
FDA Registered — #10094411
Medical device establishment
